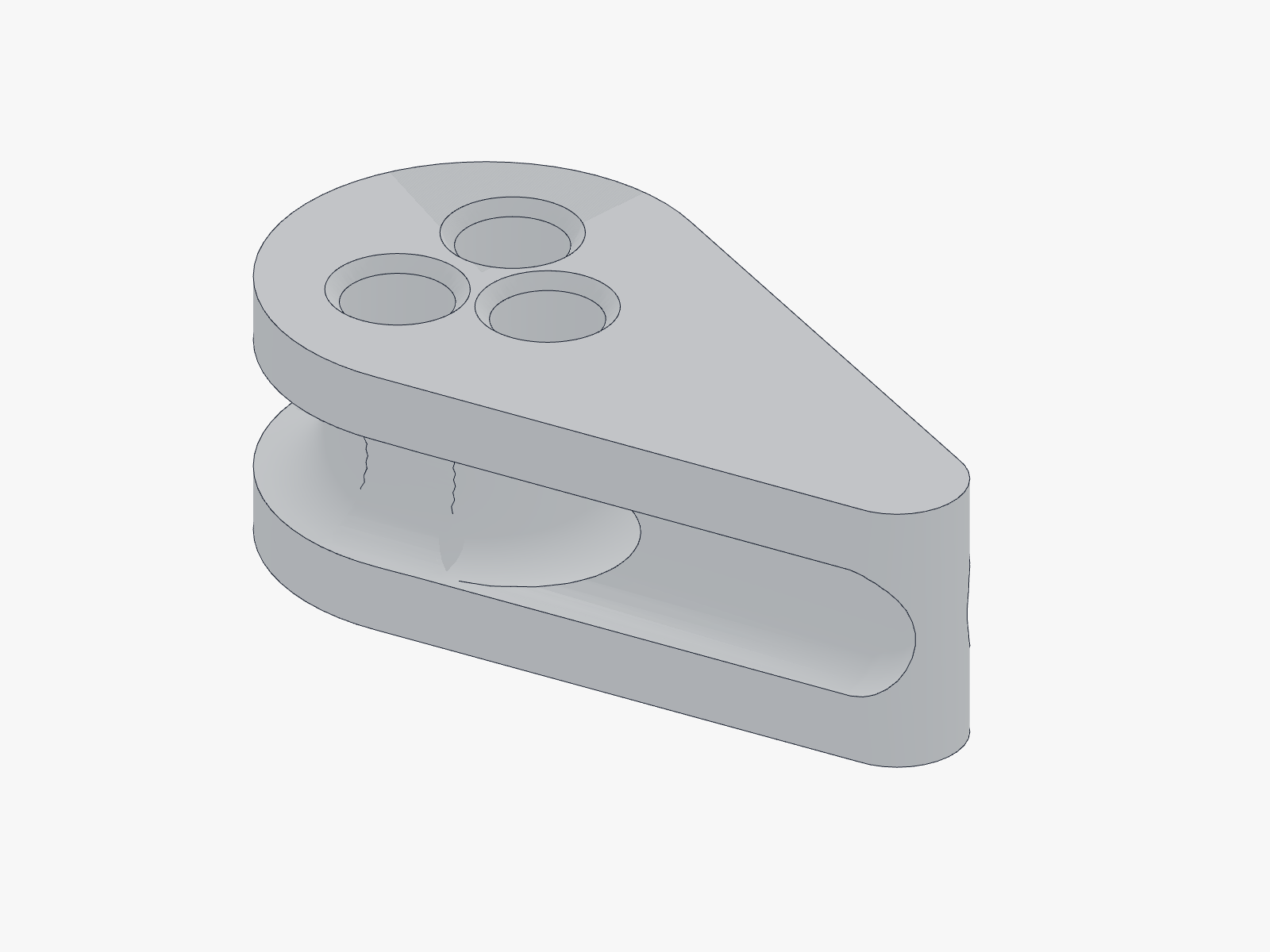

The actual approved geometry. Drag to inspect.
What it is

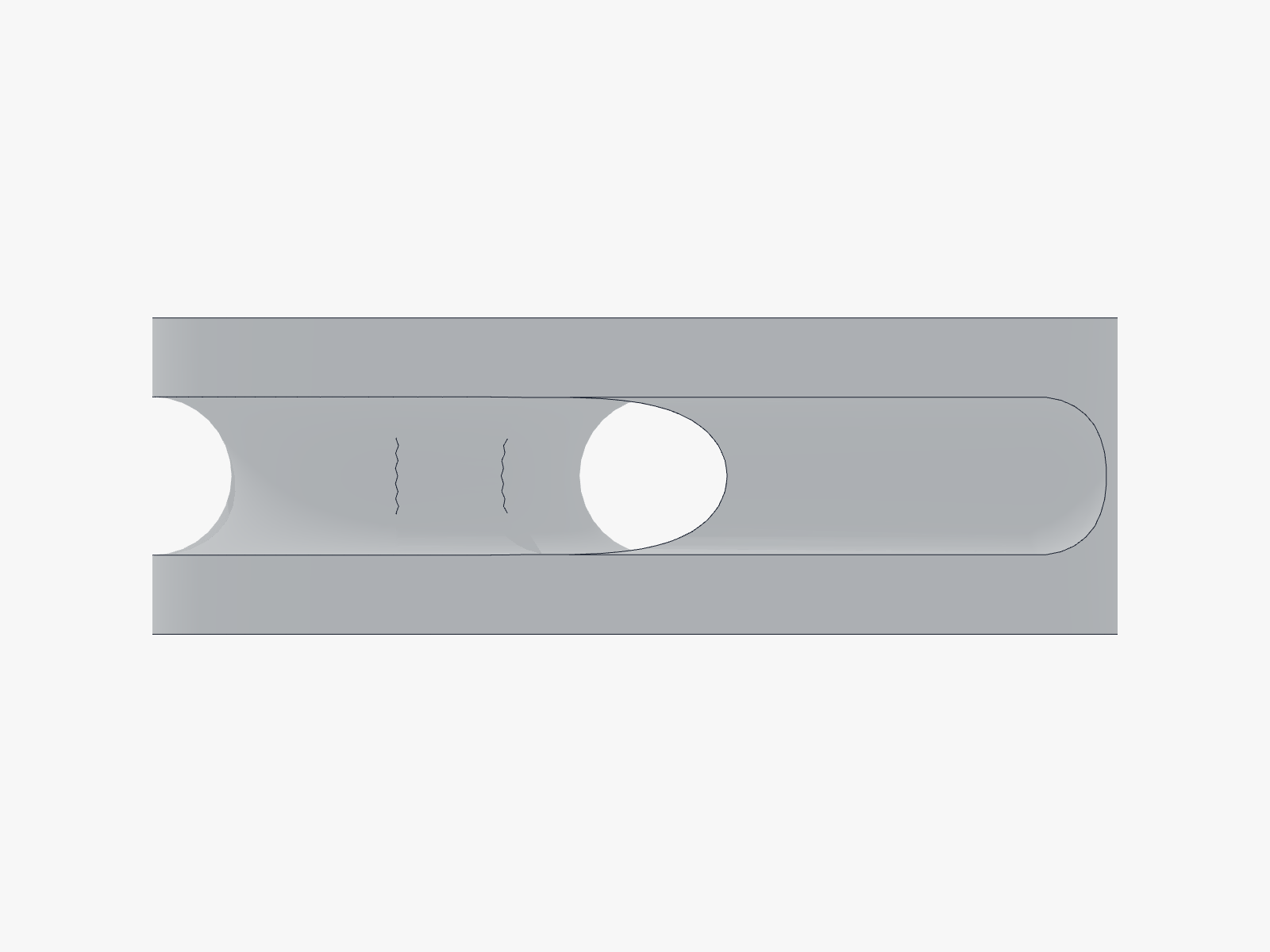

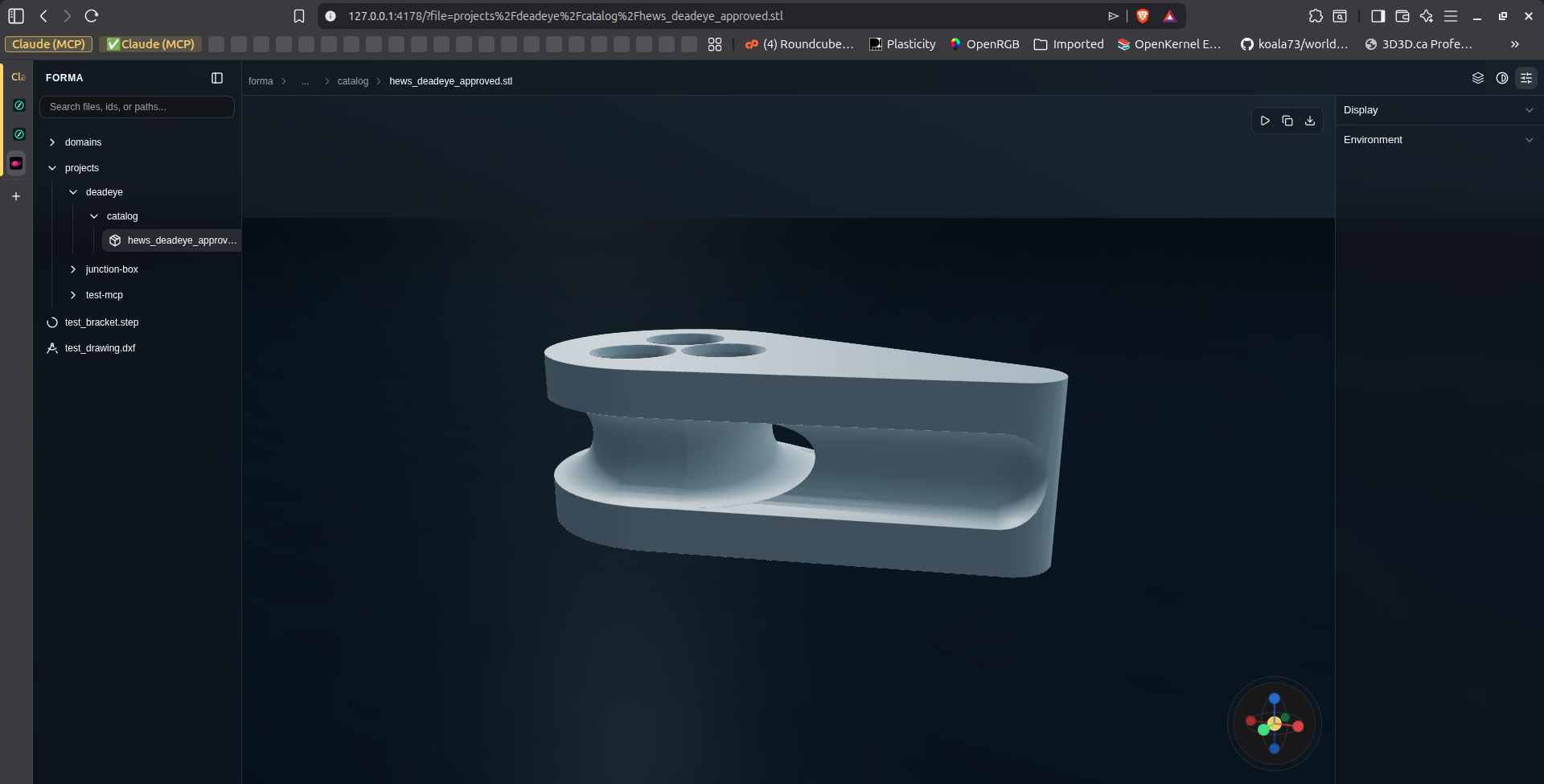

A deadeye for synthetic and wire standing rigging: the fitting that lets you tension a lifeline or stay with a lashing instead of hardware. Ours is printed in PA-CF, a nylon reinforced with carbon fiber, and generated parametrically so the groove, body, and holes match your wire exactly instead of forcing your rig to match a catalog.
Configurations
| Wire / rope | Imperial | Works with |
|---|---|---|
| 3 mm | 1/8" | Dyneema, wire, braided |
| 4 mm | 5/32" | Dyneema, wire, braided |
| 5 mm | 3/16" | Dyneema, wire, braided |
| 6 mm | 1/4" | Dyneema, wire, braided |
| 8 mm | 5/16" | Dyneema, braided |
| 10 mm | 3/8" | Dyneema, braided |
- 1 hole: toggle and lanyard setups
- 2 holes: paired lashing

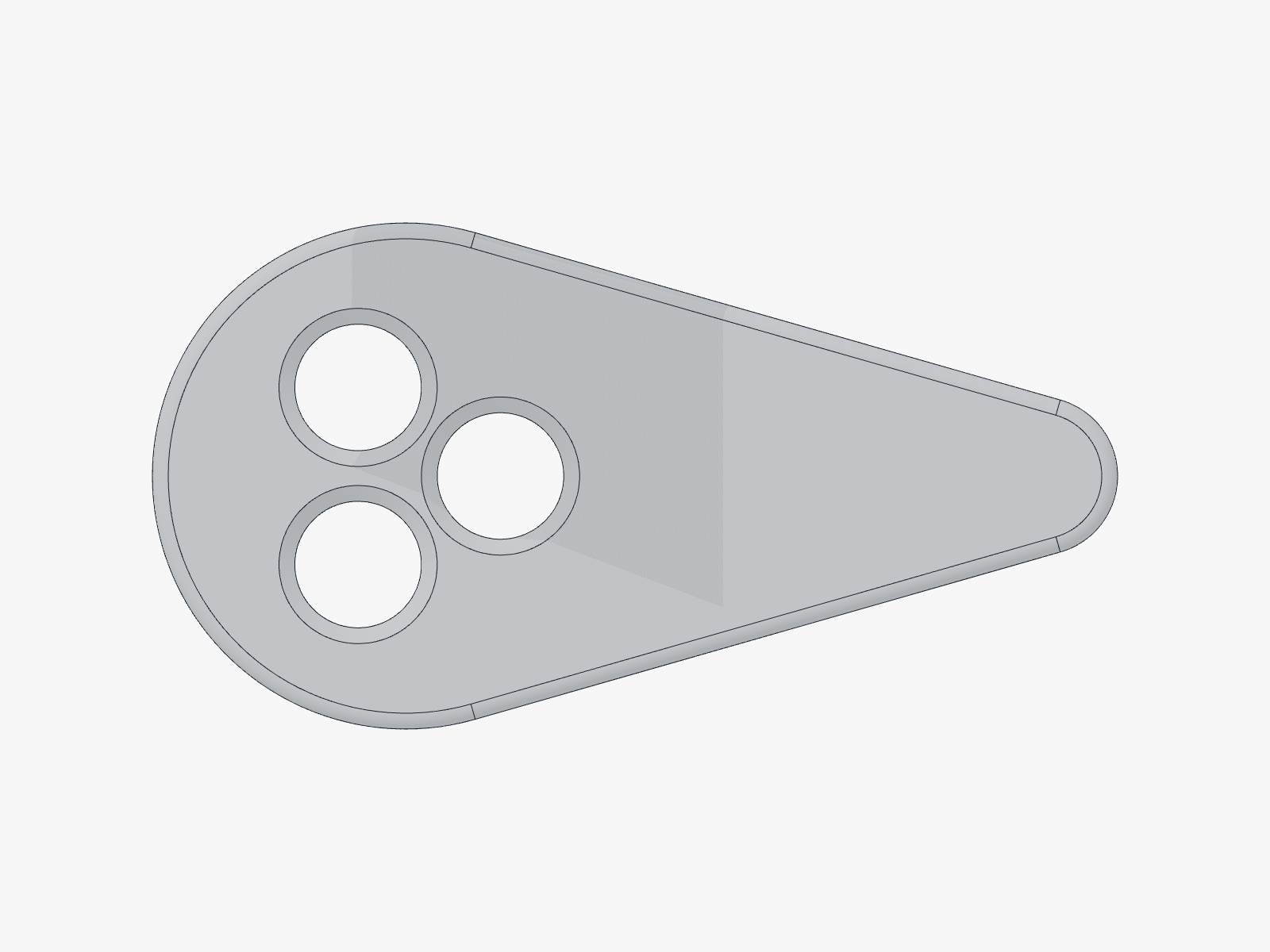

- 3 holes: traditional deadeye, best load distribution
Material
- PA-CF: nylon with carbon fiber, around 100 MPa tensile strength
- UV stable: retains over 85% strength after 3,000 hours of exposure testing
- Saltwater resistant, zero corrosion, zero galvanic issues against stainless
- Working temperature from -40°C to +150°C
- About 3 grams each in the standard size
Pricing
| Size | Price (CAD) |
|---|---|
| Small (3 to 4 mm) | $15 to $20 |
| Standard (5 to 6 mm) | $20 to $25 |
| Large (8 to 10 mm) | $25 to $35 |

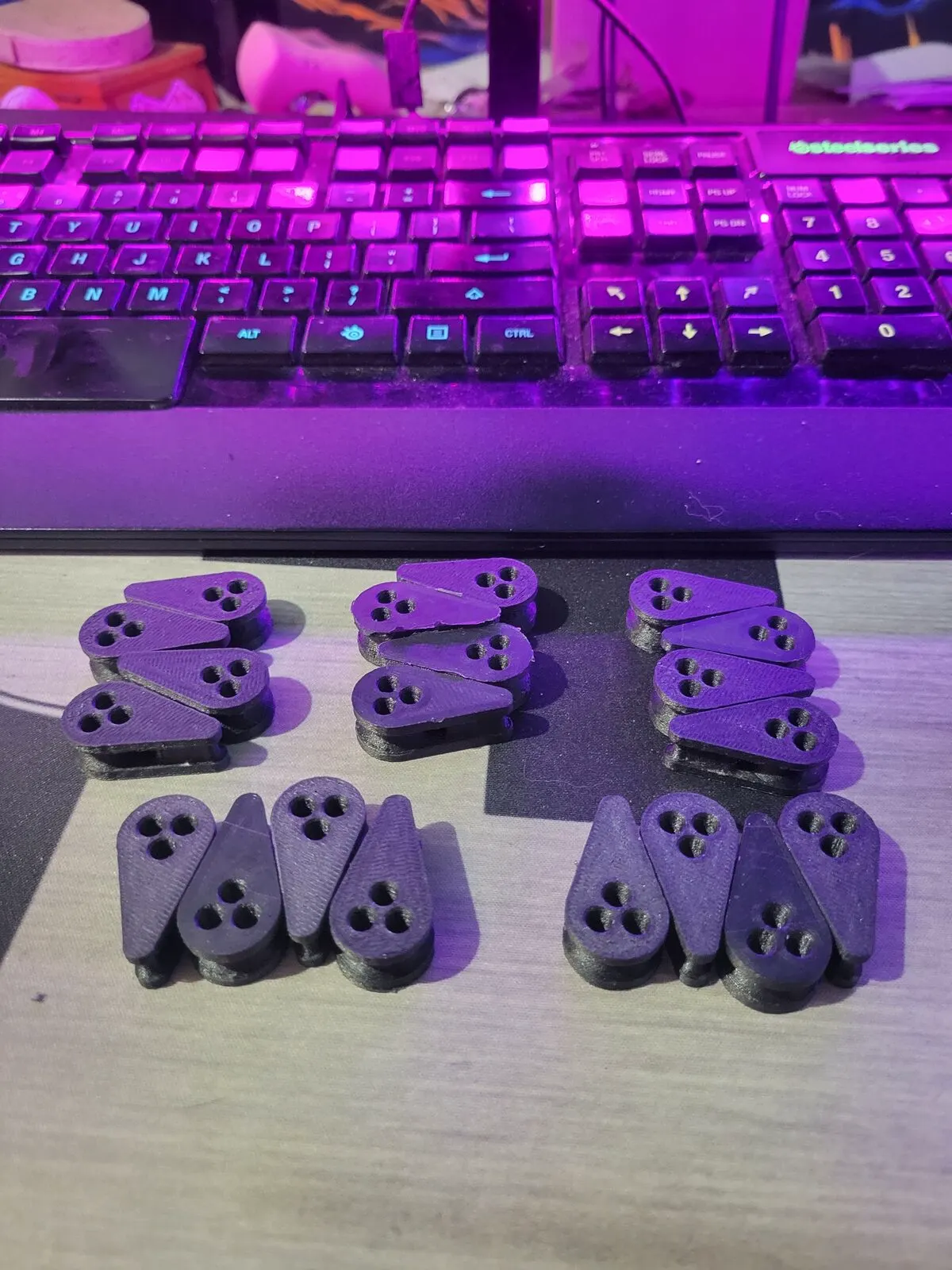

Comparable machined Delrin fittings from marine rigging brands run two to four times that. Ours are printed on demand on a Prusa Core One, so there's no inventory markup and no out-of-stock.
Need it sized to your boat?
Email your wire size or mast section with a photo of where it goes. Quote within 24 hours.
If printing is the wrong answer for your part, we say so in the quote.
